Other Movements RF


The functionality allows to do other movements, internal and external, through Radio Frequence (RF), to simplify the operational management and combine the functionalities between PC and RF.

In all actions will be available the title of the chosen definition movement and the Error field, so that the user can suspend the work unit at any time.

Create and Other Movement

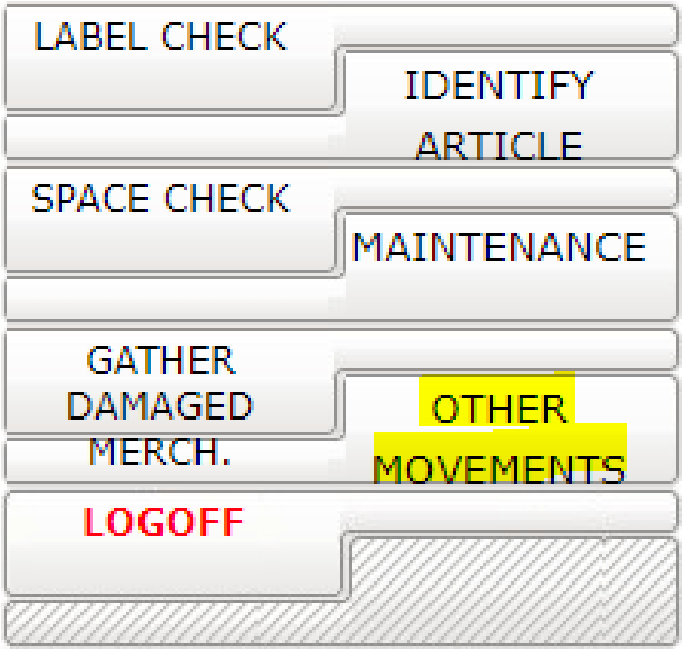

A new “on demand” option will be available on RF operators menu, which will be called “Other Movements”.

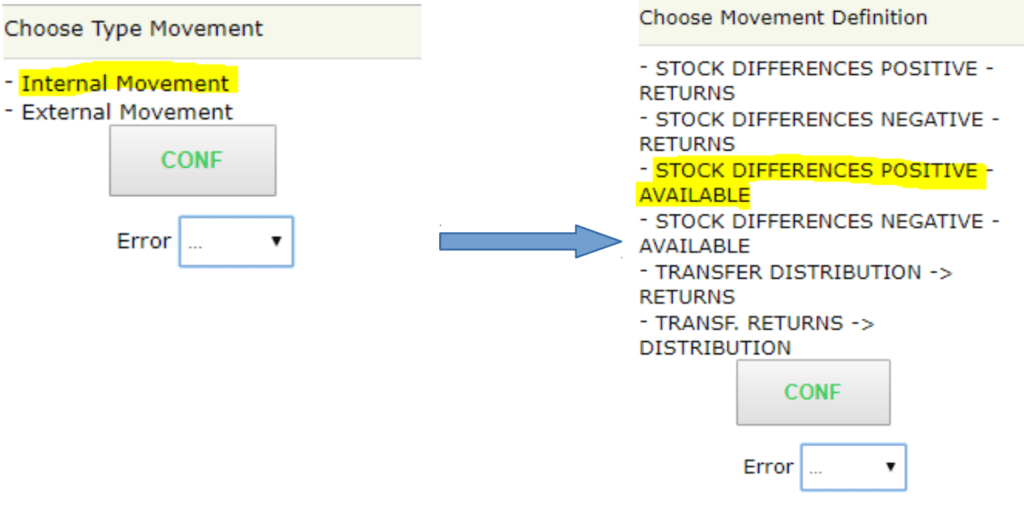

Choose Other Movement Definition

The first screen will allow the operator to choose the type of movement that must be done, which are supplied through a link, therefore doing this step will be easier to split the movement definitions, so the list can be shortened. In our example it will be performed an internal movement. On the following, the operators can choose the other movement definition. The definitions list will be suplpied with a link too.

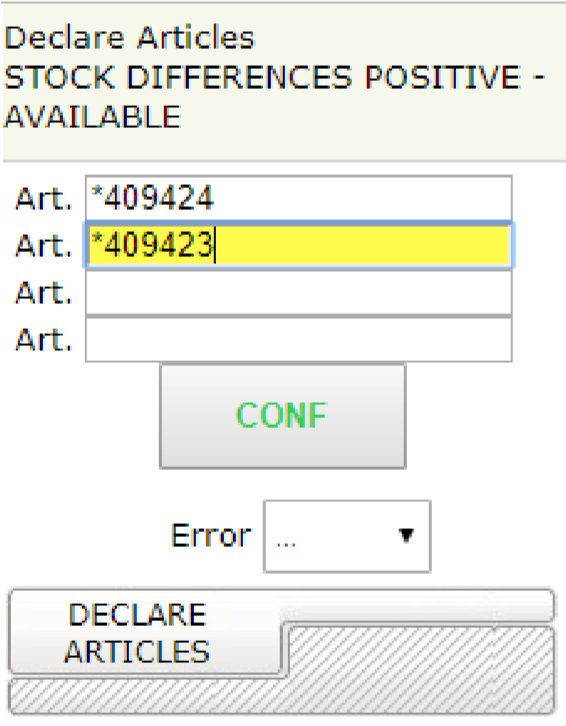

Declare Articles

On this screen, the operators should declare the articles to add to the movement. The number of lines displayed can be defined on AL118, for the action type of Declare Articles. To add articles, the operator can supply the article code directly or the article’s barcode, to ease this operation the user can use the *, so that there is no need to declare the whole article code.

In our example, the operator can supply four articles at a time, but if there is the need to add more articles, the operator can choose the option “DECLARE ARTICLES”, which will add the articles declared so far and present the same screen again. The operator can perform this operation as many times he needs, but the system will not allow duplicated articles. If the operator chooses the option “CONF”, the system will display the list of articles added to the movement.

Articles List

On this screen, the operators can check the added articles and see a summary of the movement so far, with info’s scuh as the declared quantities and containers/labels.

On articles list, the operator can choose the article and if there is the need to, to add more articles to the movement, at any time. The articles list is supplied through a link.

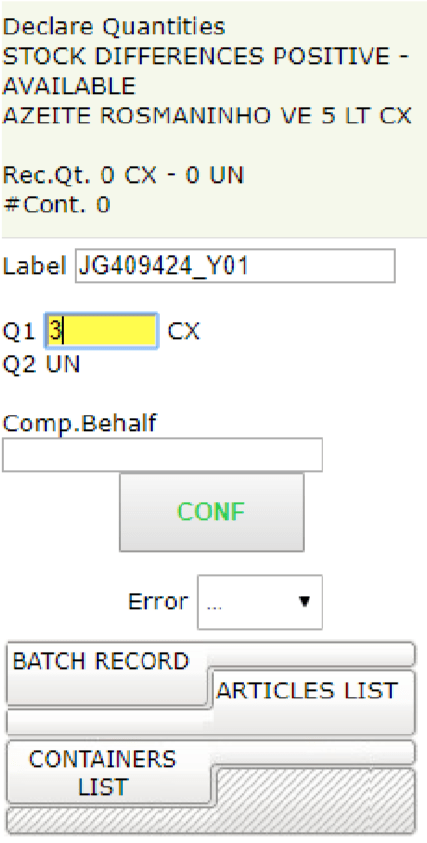

Declare Labels and Quantities

On this screen, the operators should declare the labels (if defined) and the quantities to consider to the movement.

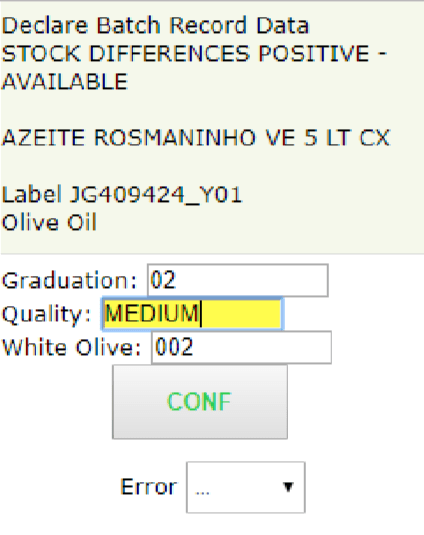

Declare Batch Record Data

The available fields to show will be defined on the movement definition on AL008. When the operator confirms the quantities through the option “CONF”, if the article has batch record defined, he will be redirected automatically to the declaration of batch record data, if the operator already knows that the batch record must be supplied, the option “BATCH RECORD” can be chosen, since the data supplied will be saved either way.

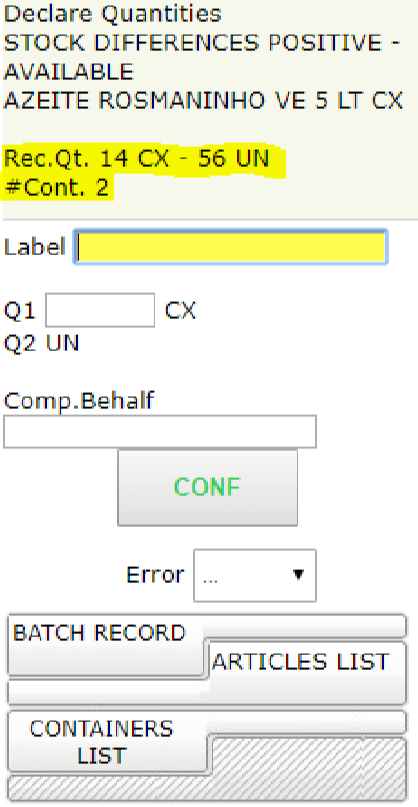

After the confirmation of the batch record data, the system will redirect automatically to the declaration of more labels and quantities. The header of the screen will display a summary of the quantites and the number of containers declared so far.

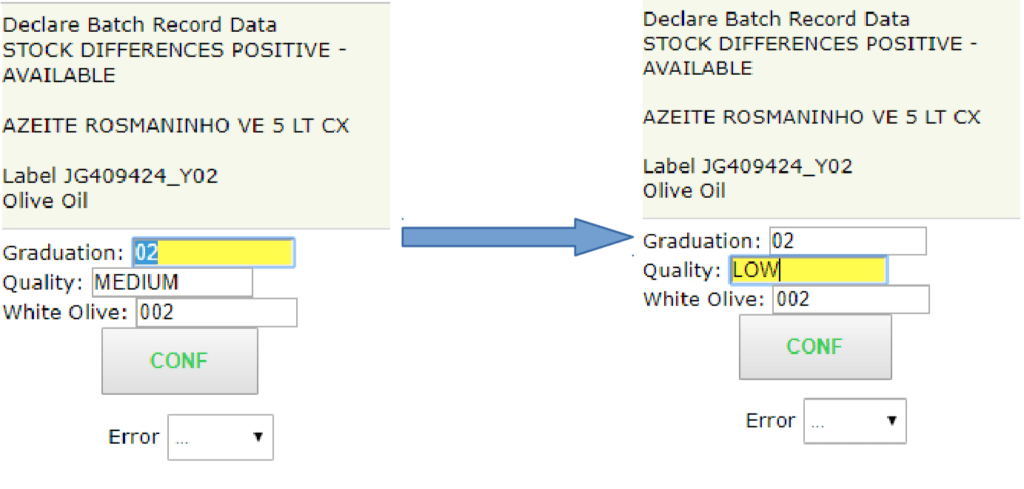

The operator can now declare more labels and quantities, after confirming the user must supply the batch data for this label, which the system will suggest the data supplied on the previous declaration.

The operator can input some new data and a new batch record will be created and linked to the declared label. After confirming, the user can supply one labels, and the header is now updated with the quantities and number of labels declared.

Containers List

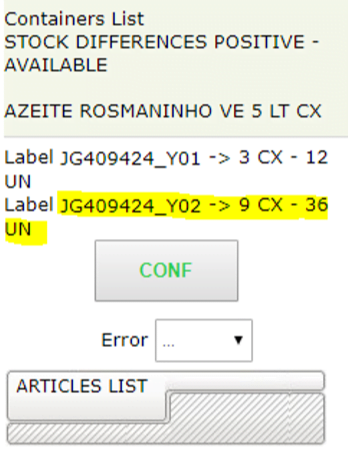

At any time, and if defined for the article the creation of containers, the user can check the declared containers for a given article, so it can be easier to track what was declared on the movement. The list is supplied through a link too.

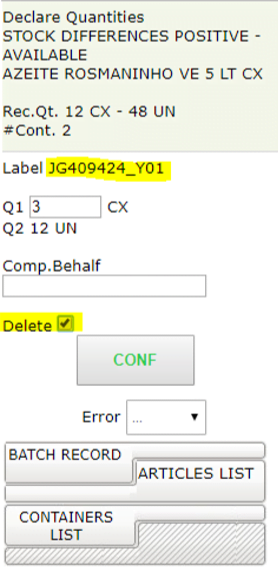

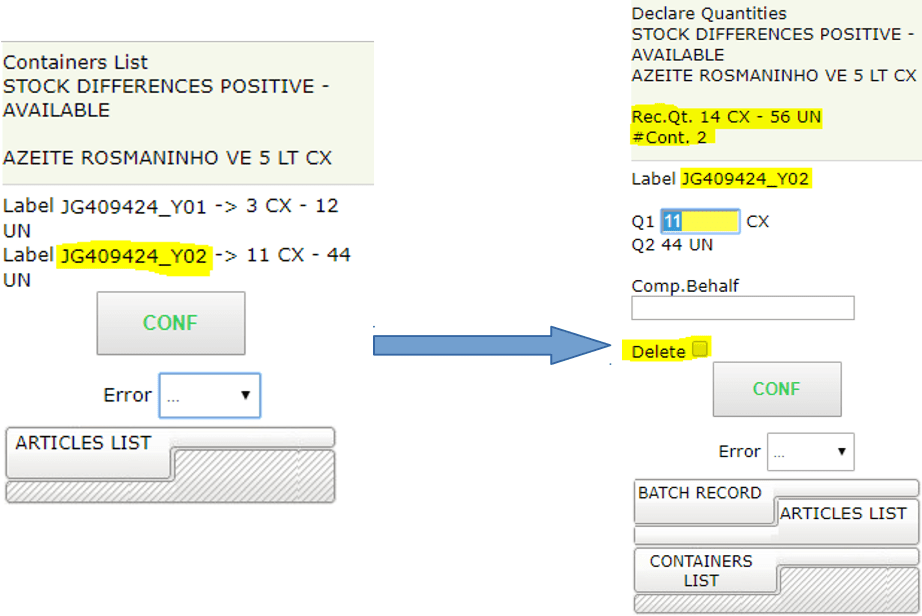

If the operator chooses a particular label, the system will show the detail of the chosen label and it will allow to edit the quantities and even to delete the selected label.

After confirming the changes on quantities the system will redirect automatically to the containers list again, so the operator can see the changes.

In our example the operator will delete the first label.

After confirming the list of containers will show only the good containers.

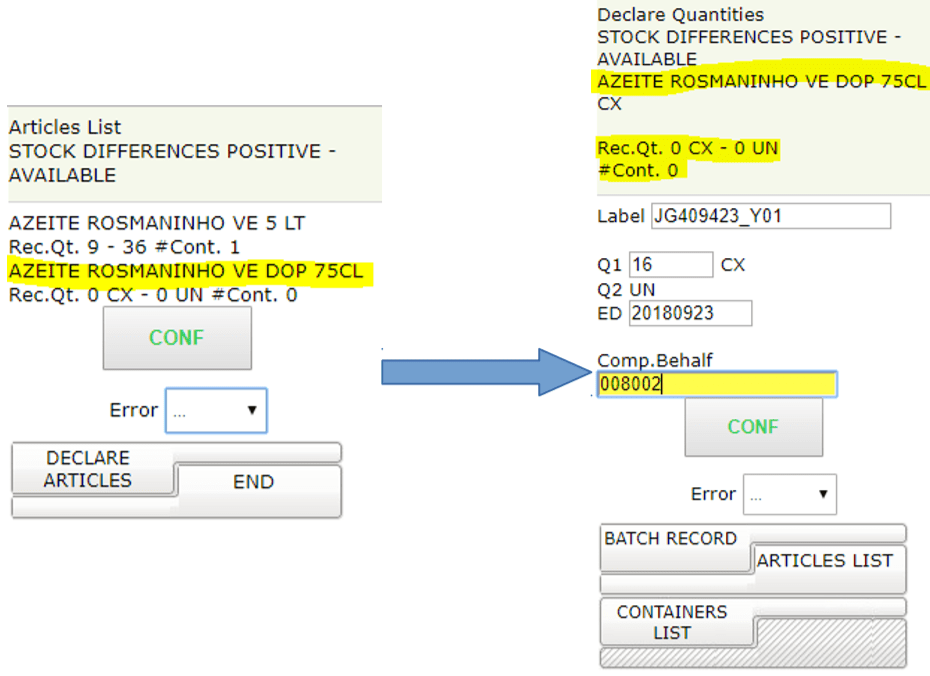

On our example the operator will declare quantities for the next article and the process restarts all over again.

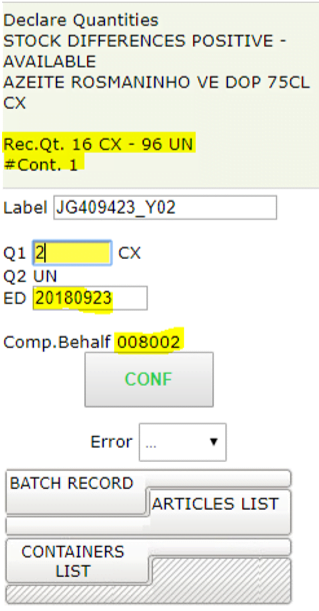

For this article, the operator must supply the expiration date and he chooses to declared also the company behalf, so on the next declarations the expiration date will be suggested and the company behalf will be showed and protected, because the company behalf can only be declared at article level and not at label level.

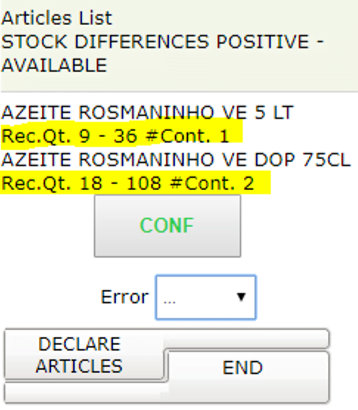

In our example the operator already declared everything, so the movement will be closed. But before that, the articles list will provide a summary of what was declared for each article.

End The Movement

If is everything OK, the operator can end the movement.

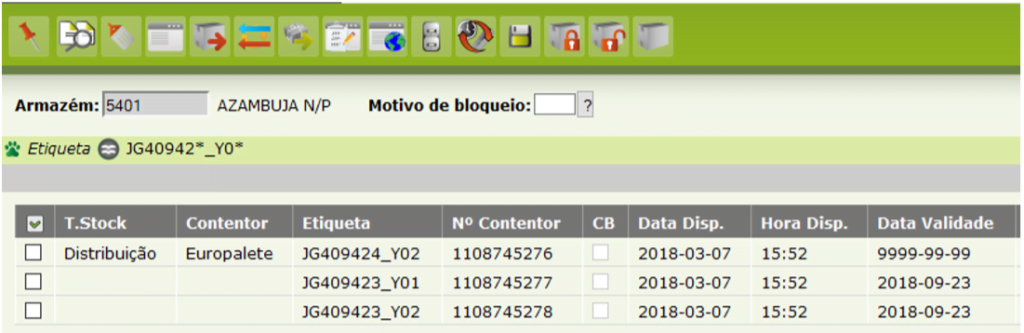

On PC, in the print bellow, it is showed the declared containers.
